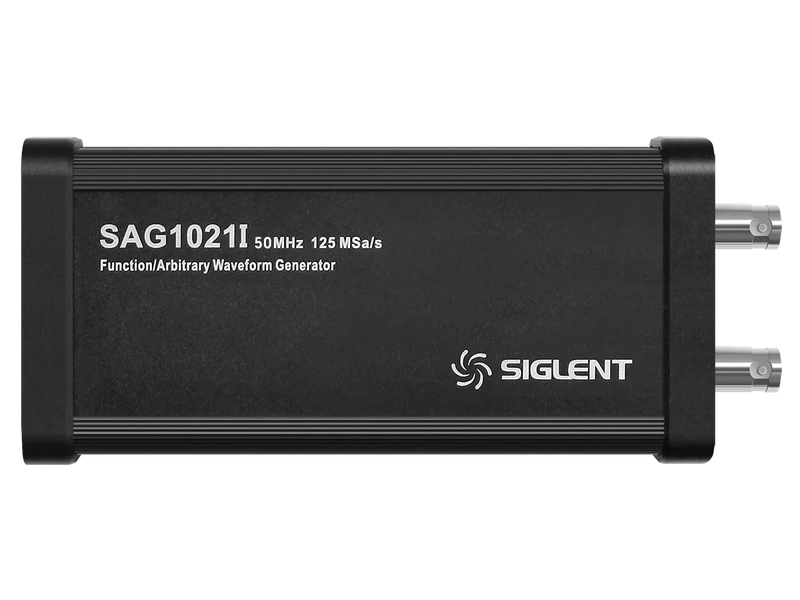

Siglent SAG1021I - External Arbitrary Waveform Generator

Siglent SAG1021I - External Arbitrary Waveform Generator

by Siglent
$211.61 - $211.61
$211.61
$211.61 - $211.61
$211.61
Availability:
Only 3 left!

Accessory for use with the four-channel SDS 800X HD, SDS1000X HD, SDS1000X-E, SDS2000X-E, SDS3000X HD, SDS5000X, and SDS6000A oscilloscopes. Output Sine, Square, Ramp, Pulse, Noise, DC and 45 built-in waveforms. The arbitrary waveforms can be accessed and edited by the EasyWave PC software.

Requires the correct Function Generator Activation License for the specific oscilloscope (part number ends with -FG)

  • Outputs: 1
  • Max. Output Frequency: 25 MHz
  • Sampling Rate: 125 MSa/s
  • Frequency Resolution: 1 μHz
  • Frequency Accuracy: ±50 ppm
  • Vertical Resolution: 14-bit
  • Amplitude Range: 1.5 ～ +1.5 V (50Ω load), -3 ～ +3 V (High-Z load)
  • Waveform Types: Sine, Square, Ramp, Pulse, Noise, DC and 45 built-in waveforms
  • Output impedance: 50 Ω±2%
  • Protection: Over-Voltage Protection, Current-Limiting Protection
  • Insulation Voltage: ±42 Vpk (for SAG2021I only)
