Demo Specials

Fully functional demo unit. Only available to Canadian customers. Frequency bandwidth: DC to 50 MHz Maximum continuous input range: 30 Arms Functions with Digital Oscilloscopes, Scopecorders or other waveform measuring instruments.

Fully functional demo unit Only available to Canadian customers. Precision AC Standard Intuitive operation: Dials and switches are provided for each digit and function, and traditional 7-segment LEDs provide clear visibility 6 voltage ranges (100 m/1/10/100/300/1000 V) 4 current ranges (100 m/1/10/50 A) Sweep (Voltage/Current/Frequency) Output Divider: Linearity tests can be simply performed by dividing the output into steps. For example, a setting of 4 will generate steps of 25, 50, 75 and 100% of the set output value. % Deviation readout Common current output terminals: The same output terminals are used for all current ranges. Test times are therefore reduced by avoiding the need to change the wiring for meters which have different ranges. Wide frequency range-: 40 to 1000 Hz (Frequency accuracy : ±50 ppm) The 2558A precision DC calibrator is an easy-to-use, yet highly accurate instrument that can be used to calibrate analog power meters, thermometers, and temperature controllers that use a thermocouple or a resistance temperature detector (RTD). The 2558A can output a wide range of AC voltages (1.00 mV to 1200.0 V) and currents (1.00 mA to 60.00 A) at frequencies of 40 to 1000 Hz. The accuracy (maximum error) is ±0.04% for AC voltage and ±0.05% for AC current, ensuring accurate calibration, and the stability is as high as ±0.005%/h. The easy-to-read digital display and dials for setting each digit are intuitive to use. The current output terminals can be used for all measurement ranges, which improves work efficiency by eliminating the need to change cables for a specific current level.

Fully functional demo unit Only available to Canadian customers. SMARTDAC+ 10 Channel Paperless Data Acquisition Unit GP20 - 12.1" touchscreen display /1E1D - Standard (Max Measurement Channels 100 ch), English, 100/240 VAC, UL/CSA Power Cord /MT - Mathematical function /MC - Communication channel function /UH - USB interface /UC10 - With analog input module, 10ch (Clamp terminal) /E2 - WT Communication Industrial processes and test laboratories require rigorous, continuous monitoring in the design, validation, and service stages of product development, product testing, and manufacturing. The GP series is Yokogawa’s latest laboratory recorder, with handle and footstands to enable portable and benchtop use. The GP series is an industry-first multi-point touch panel, to improve intuitive and smart operator control. Users can scroll, pan, zoom historical data, and even write freehand messages on its dust-proof and water-proof display. It delivers industry leading reliability and measurement accuracy. The GP series is ideally suited for monitoring or troubleshooting long term physical or electrical trends. More Information

Fully functional demo unit. Total Power - 222 Watts Max Voltage - 64 Volts Max Current - 10 Amps 3 Channels The DP2000 Series Power Supplies combine new high speed and high accuracy technology to provide a flexible test and analysis instrument for all of your DC power applications. The DP2031 is a 3 channel power supply with new capabilities that expand its value. First, the DP2031 comes with a low current measurement range that makes microamp measurements possible with 28 microamp accuracy and 1 microamp resolution. Combine that with the high-speed arb function that allows you to update the power supply output at up to 1000 times per second and you can quickly emulate battery configuration tests for all of your IoT and portable electronics. You can also combine channels 1 and 2 internally either in parallel or in series to expand the power envelope for your testing. No more cabling challenges since you can now get the current or voltage for both channels with one cable connection. This combination of flexibility and capability makes the DP2000 an important addition to any engineer’s bench.

Fully functional demo unit. 100 MHz bandwidth 4 analog channels 12 bit vertical resolution 1 GSa/s Real-time sample rate 50 Mpts max memory depth (100M option available) 50,000 wfms/s waveform capture rate The DHO1000 Series provides improved signal integrity and value with our latest oscilloscope technology. Our UltraVision III platform combined with a new ASIC chip design that provides true 12 bit samples makes the DHO1000 a great solution for benchtop applications where noise and accuracy are paramount. With bandwidths from 70 MHz to 200 MHz, these 2 and 4 channel oscilloscopes have our best signal visualization capabilities. Combine 50-100 Million points of memory, our new Ultra Acquire burst capture mode, and precision measurements for incredible signal fidelity value. The DHO1000 Series is a powerful entry level solution for engineers looking for next generation signal quality and value.

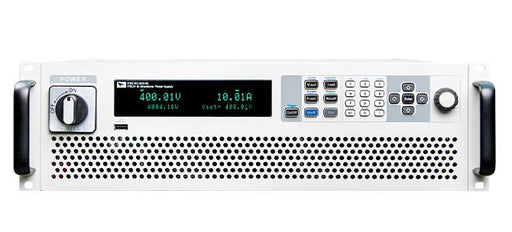

This is a fully functional demo unit. 3U Bidirectional Programmable DC Power Supply Power: 5kW Voltage: 500V Current: 30A The bidirectional programmable DC power supply of IT6000C series combines two devices in one: a power supply (source) and an electronic load (sink) with energy recovery. Based on these two functions, IT6000C bidirectional DC power supply offers the functionality of two-quadrant operation. The regenerative capability enables the energy consumed to be put back onto the grid cleanly, saving costs from energy consumption and cooling, while not interfering with the grid.

Fully functional demo unit. 1U half rack, high power density regenerative power system. Load Parameters Input Voltage: 0-150 V Input Current: 0-12 A Input Power: 0-400 W Power Supply Parameters Voltage: 0-150 V Current: -12 A - 12 A Power: -400W - 400W IT-M3600 regenerative power system integrates two instruments in one, which is a bidirectional power supply and a regenerative electronic load. When used as a load, its energy recovery function can convert the absorbed DC power into AC power and return it to the grid. When used as a power supply, it can also be used as a wide range bidirectional DC power supply. IT-M3600 combines the advantages of both instruments well, and its small size of only 1U half rack also help to save your space, time and cost. IT-M3600 with high-precision output and measurement, it is suitable for multiple test fields such as multi-module batteries, multi-channel power supplies, micro inverters, and semiconductor devices.

Fully functional demo unit. Only available to Canadian customers. Leakage current measurement with current range from 20mA to 200A Light weight and compact design Manual range switching and auto power-off functions 24mm in diameter of measurable conductor Mean value display Auto power-off Manual range switching Approved for conformity to safety standards EN61010-1, EN61010-2-032(CAT. III 300 V)

Fully functional demo unit. Only available to Canadian customers. Voltage Calibrator - Current Calibrator Signal source: DCV (Max. 30V), DCA (Max. 24 mA) Measurement: DCV (Max. 30V), DCA (Max. 100 mA) Features: Auto step (4 to 20mA), 20mA SINK, Sweep function

Fully functional demo unit. Only available to Canadian customers. A power supply for current probes, FET probes, and differential probes. Supplies power for up to four probes, including large current probes. (For 702915 and 702916, up to two probes can be powered when measuring maximum current.)

Fully functional demo unit. Only available to Canadian customers. The Yokogawa 720220 -Channel Voltage Input Module, used in the DL850 ScopeCorder, is a multichannel voltage module capable of measuring 16 channels of DC voltage on a single unit. Scan method measurements are possible by using a removable spring terminal block (removable in 8 channel sections) at the input. The input section uses Weidmueller B2L 3.5/16LH clamp connectors. The maximum sampling rates are 200 kS/s (1 CH) and 10 kS/s (16 CH simultaneous). The minimum voltage input range is 200 mV/div, and the maximum is 42 V (direct input, 1 kHz or less).You can build a 128 CH measuring system by installing up to 8 modules in a single DL850. On each of the 16 channels (and subchannels) in the Yokogawa 720220, you can individually set the range and other input conditions, position, zoom, and other display conditions. Input terminal blocks are isolated from ground. There is no isolation between channels within the input terminal block. Specifications of the Yokogawa 720220 include: Input Channels: 16 Input Coupling: DC, GND (Selectable for each sub-CH) Maximum Sample Rate: 200kS/s (single CH) [10kS/s when using 16-CH] Input Type: Isolated unbalanced Frequency Range: (-3dB)*1 DC to 5kHz Voltage-Axis Sensitivity Setting: 200mV/div (1-2-5 steps) Maximum Input Voltage: (1kHz or less) Direct Input - 42V (DC+ACpeak) Maximum Allowable Common Mode Voltage: (1kHz or less) Direct Input 42V (DC+ACpeak) (CAT 1 and CAT II, 30 Vrms) Vertical (voltage) Axis Accuracy: DC Accuracy ±(0.3% of 10div) Input Connector: Spring-type terminal (removable per 8CH) Input Impedance 1MO ±1% Common Mode Rejection: Ratio 86 dB (50/60 Hz) or more (Typ.) A/D Conversion Resolution: 16-bit (2400 LSB/div) Temperature Coefficient: Zero point: ±(0.015% of 10div)/°C (Typ.) Gain: ±(0.01% of 10div)/°C (Typ.) Bandwidth Limit: OFF/500Hz (Selectable for each sub-CH)

Fully functional demo For DSA-815/TG Models Energized by USB; connected with PC for operations and controlled through the program control panel on the PC. Provide 10MHz reference signal output and can easily realize clock synchronization with other devices of the system. Built-in 50MHz signal which can be connected to the input port by “switches” to facilitate users' learning, operation and demonstration of the spectrum analyzer. 500MHz and 1GHz local oscillator signal outputs with good phase noise to convenient users' various measurement needs when there is no signal source. Modular circuit design; provide interfaces for users to make separate measurement of any component; enable to replace any component.

Fully functional demo unit Only available to Canadian customers. DL850E ScopeCorder is a mixed signal oscilloscope and portable data acquisition in one. This unit comes comes with: D: UL and CSA Standard HE: English Menu and Panel HD1: Internal HDD (500 GB) G5: Power Math Function (including Real Time Math Function) P4: Four Probe Power Outputs

Fully functional demo unit. Programmable DC Power Supply, 1U, 1600W / 40V

Fully functional demo unit. Programmable DC Power Supply, 1U, 1000W / 60V

This is a fully functional demo unit. 3U Bidirectional Programmable DC Power Supply Power: 18kW Voltage: 800V Current: 75A The bidirectional programmable DC power supply of IT6000C series combines two devices in one: a power supply (source) and an electronic load (sink) with energy recovery. Based on these two functions, IT6000C bidirectional DC power supply offers the functionality of two-quadrant operation. The regenerative capability enables the energy consumed to be put back onto the grid cleanly, saving costs from energy consumption and cooling, while not interfering with the grid.

Fully functional demo unit. Only available to Canadian customers. High-Speed 100 MS/s 12-Bit Isolation Module (2 channels) IsoPRO technology enables 1kV isolated measurements in combination with 700929 or 701947 probe and is designed for inverter / IGBT related applications in mind. Using high speed optical fiber-based transmission, the module achieves high speed ADC clock and data isolation and provides the performance needed to develop high efficiency inverters, which employ high voltages, large currents, and ever increasing switching speeds. Applicable to DL350, DL850 series, DL950, and SL1000.

Fully functional demo unit. Only available to Canadian customers. High-Speed 1 MS/s 16-bit Isolation Module (4 ch) High Noise Immunity Suitable for testing and long term monitoring for power generators and multi-output power supplies. Provides dynamic analysis of multi-channel data recording applications. Applicable to DL350 and DL850 series.
