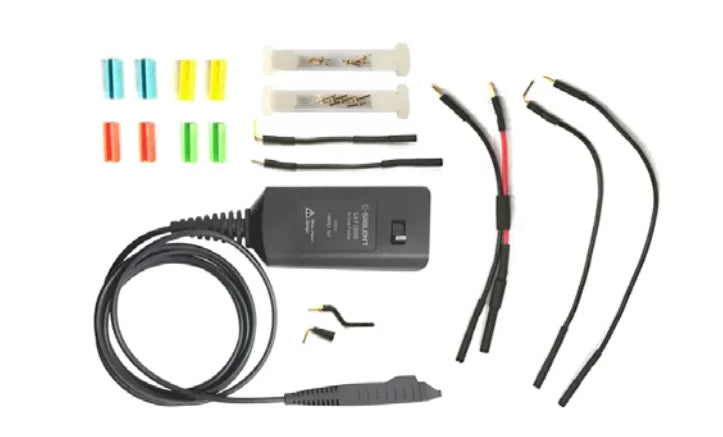

Siglent SAP1000 - 1 GHz Active Probe

Siglent SAP1000 - 1 GHz Active Probe

by Siglent
$1,281.22 - $1,281.22
$1,281.22
$1,281.22 - $1,281.22
$1,281.22
Availability:
Only 1 left!
Download Datasheet

1 GHz active probe for use with the SIGLENT SDS5000X/SDS6000A series of oscilloscopes

  • Single-ended (uses instrument ground. Not differential)
  • Bandwidth (probe only) >1 GHz
  • Bandwidth (with scope) 1 GHz (SDS5104X) 1 GHz (SDS6204A)
  • Input capacitance 1.2 pF
  • Input resistance 1 MΩ
  • Offset range ±12 V
  • Attenuation ratio (DC) ÷10
  • Offset accuracy < 3%
  • DC gain accuracy < 3%
  • Input dynamic range ±8 V
  • Maximum input voltage (non-destructive) 20 V
  • Cable length 130 cm
