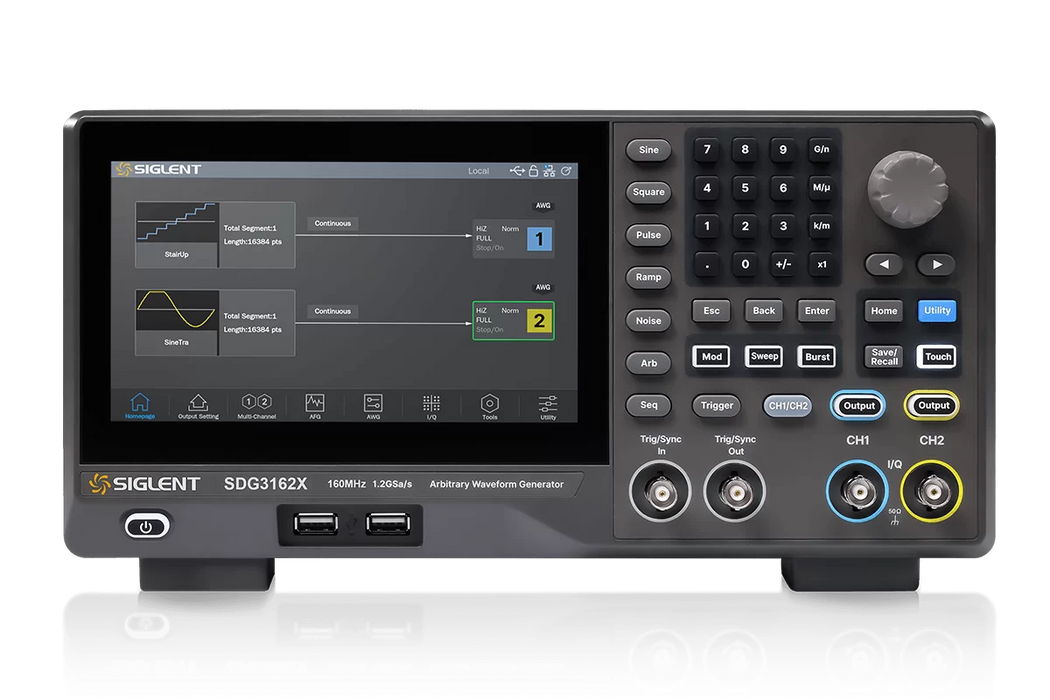

Siglent SDG3162X - 160MHz Waveform Generator

Siglent SDG3162X - 160MHz Waveform Generator

by Siglent
$1,618.65 - $1,618.65
$1,618.65
$1,618.65 - $1,618.65
$1,618.65
Availability:
Available for backorder
Download Datasheet
  • Output frequency: 160 MHz
  • Sampling rate: 1.2 GSa/s
  • Vertical resolution: 16-bit
  • Arbitrary waveform length: Up to 40 Mpts/ch
  • Supports dual pulse output function

The Siglent SDG3000X Series is a high-performance, dual-channel function/arbitrary waveform generator designed to deliver exceptional signal fidelity across a bandwidth of up to 200 MHz. Engineered with a robust 1.2 GSa/s sampling rate and 16-bit vertical resolution, these units utilize Siglent’s innovative TrueArb and EasyPulse technologies to solve the common jitter and detail-loss issues found in traditional DDS generators. This ensures point-by-point arbitrary waveform output and ultra-precise pulse width and edge adjustments.

Beyond standard wave generation, the series offers advanced capabilities including PRBS generation up to 120 Mbps, sequence wave playback with 40 Mpts of memory, and a specialized dual pulse function for power device testing. The hardware is rounded out by a vibrant 7-inch touch screen, a built-in web server for remote browser-based control, and a comprehensive suite of analog and digital modulations. Whether performing complex harmonic analysis or evaluating dynamic device characteristics, the SDG3000X series provides a versatile, low-jitter solution for demanding RF and design applications.
