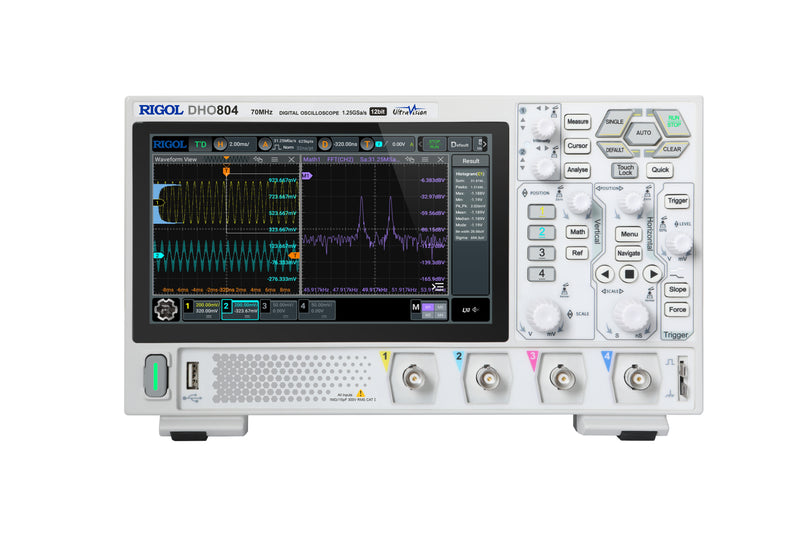

Rigol DHO804 - Compact Digital Oscilloscope

Rigol DHO804 - Compact Digital Oscilloscope

by Rigol
Save 7% Save 7%
$526.68
$526.68 - $526.68
$526.68
$492.36
$492.36 - $492.36
$492.36
Availability:
5+ in stock, ready to be shipped
Download Datasheet
  • 70 MHz bandwidth
  • 4 analog channels
  • 1.25 GSa/s real-time sample rate
  • 25 Mpts memory depth
  • 12 bit vertical resolution
  • 1,000,000 wfms/s in Ultra Acquire Mode
  • Compact size

The DHO800 series from RIGOL embodies their latest addition: a digital oscilloscope that combines high performance with affordability. Despite its small size, this oscilloscope stands out for its exceptional capabilities, including a capture rate of up to 1,000,000 waveforms per second (in UltraAcquire Mode), a 25 Mpts memory depth, 12-bit resolution, and minimal noise.

The DHO800 impressively maintains a compact form factor while boasting a wealth of features. A quick comparison with the DHO1000 readily reveals the noticeable difference in size.

DHO800 vs DHO1000

DHO800 vs DHO1000

DHO800 vs Notebook

DHO800 vs Standard Notebook

The small form factor easily allows the DHO800 to be used as a portable handheld instrument that can be powered by a battery bank.

DHO800 handheld DHO800 battery bank

Features

  • Ultra-low noise floor, purer signal, never miss the small signals
  • Up to 12 bits resolution for all the models of this series
  • Max. real-time sample rate of 1.25 GSa/s
  • Max. memory depth of 25 Mpts
  • Vertical sensitivity range: 500 μV/div to 10 V/div
  • Max. capture rate of 1,000,000 wfms/s (in UltraAcquire mode)
  • Digital phosphor display with real-time 256-level intensity grading
  • Waveform search and navigation function allows you to debug the signal anomalies faster
  • 7" (1024x600) capacitive multi-touch screen
  • Brand new Flex Knob brings a user-friendly experience
  • USB Device & Host, LAN, and HDMI interfaces (std.) for all the models of this series
  • Novel and delicate industrial design, easy to operate
  • Unique online upgrade
