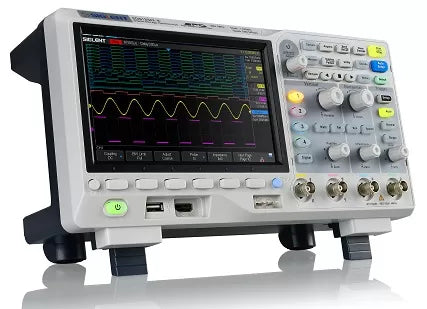

SIGLENT offers the SDS1000X-E Super Phosphor Oscilloscopes in two-channel and four-channel models. The two-channel variant provides a 200 MHz analog bandwidth, a single ADC with a maximum sample rate of 1 GSa/s, and a single memory module with 14 Mpts of sample memory. On the other hand, the four-channel version is available in 100 MHz and 200 MHz models, featuring two 1 GSa/s ADCs and two 14 Mpts memory modules.
When all channels are active, each channel operates at a sample rate of 500 MSa/s with a standard record length of 7 Mpts. In the case of a single channel per ADC being active, the maximum sample rate is 1 GSa/s, and the maximum record length is 14 Mpts. The front panel design is user-friendly, providing easy access to commonly used functions.
The SDS1000X-E series incorporates Super-Phosphor Oscilloscope (SPO) technology for excellent signal fidelity and performance, with lower system noise compared to similar products. It offers a minimum vertical input range of 500 uV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/sec in sequence mode. Additional features include a 256-level intensity grading display function and a unique color temperature display mode.
This oscilloscope series supports multiple powerful triggering modes, including serial bus triggering and decoding for IIC, SPI, UART, CAN, and LIN protocols. The XE models include History waveform recording and sequential triggering for extended waveform analysis. A notable addition is the new 1 million points FFT math function, providing high-frequency resolution when observing signal spectra. The digital design incorporates a hardware co-processor for quick and accurate measurements without compromising acquisition and front-panel response.
The SDS1000X-E series stands out in its price class, offering unmatched features and performance. The four-channel series includes advanced functions such as searching and navigating, on-screen Bode plot, 16 digital channels (Option), an external USB-powered 25 MHz AWG module (Option), a USB WIFI adapter (Option), and an embedded application for remote control via a web browser.
Key Features of the SDS1104X-E, SDS1204X-E, and SDS1202X-E models include:
- 100 MHz, 200 MHz bandwidth models
- Two-channel series has one 1 GSa/s ADC, four-channel series has two 1 GSa/s ADCs
- When all channels are enabled, each channel has a maximum sample rate of 500 MSa/s. When a single channel per ADC is active, it has a sample rate of 1 GSa/s
- Siglent SPO technology
- Waveform capture rates up to 100,000 wfm/s (normal mode) and 400,000 wfm/s (sequence mode)
- Supports 256-level intensity grading and color temperature display modes
- Record length up to 14 Mpts
- Digital trigger system with intelligent trigger modes
- Serial bus triggering and decoding for IIC, SPI, UART, CAN, LIN
- Video trigger, supports HDTV
- Low background noise with voltage scales from 500 μV/div to 10 V/div
- Ten types of one-button shortcuts for various functions
- Segmented acquisition (Sequence) mode for capturing qualifying events
- History waveform record (History) function with a maximum recorded waveform length of 80,000 frames
- Automatic measurement function for 38 parameters and Measurement Statistics, Zoom, Gating, Math, History, and Reference functions
- 1 Mpts FFT with Peaks and Markers support for four-channel series
- Math and measurement functions utilize all sampled data points (up to 14 Mpts)
- Preset key can be customized for user settings or factory defaults
- Security Erase mode
- High-speed hardware-based Pass/Fail function
- MSO, 16 digital channels (four-channel series only, option)
- Bode plot, Measuring Power Supply Control Loop Response (four-channel series only)
- Search and navigate (four-channel series only)
- USB AWG module (four-channel series only, option)
- USB WIFI adapter (four-channel series only, option)
- Web Browser-based control (four-channel series only)
- Large 7-inch TFT-LCD display with 800 * 480 resolution
- Multiple interface types: USB Host, USB Device (USB -TMC), LAN, Pass/Fail, Trigger Out
- Supports SCPI remote control commands
- VXI-11+SCPI, Telnet (Port 5024) +SCPI, and Socket (Port 5025) +SCPI programming over LAN
- Supports Multi-language display and embedded online help
- Supports Label (four-channel series only)
- Supports counter (four-channel series only)
- Supports data logger including Sample Logger and Measurement Logger (four-channel series only)
- Supports NTP (Network Time Protocol) (four-channel series only)
