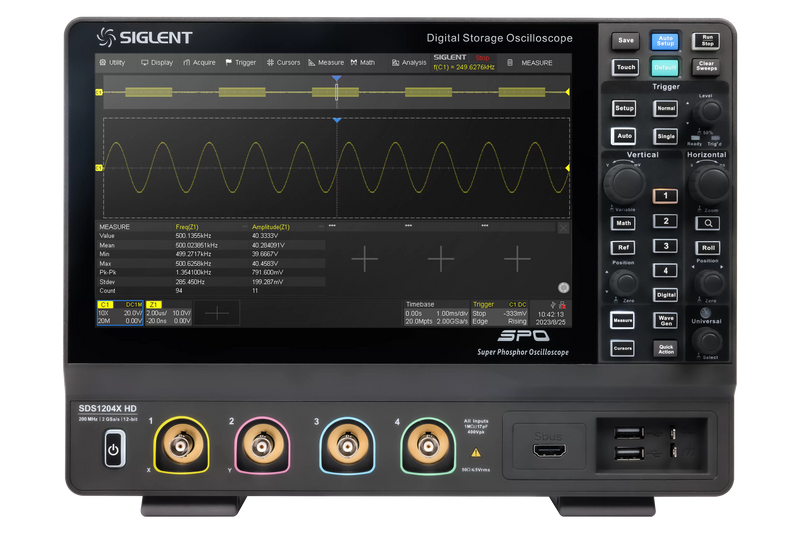

Siglent SDS1104X-HD - 12 Bit 100 MHz Digital Oscilloscope

SIGLENT’s SDS1000X HD series of high-resolution digital storage oscilloscopes utilize 2 GSa/s, 12-bit Analog-Digital Converters, and front ends known for their exceptional noise floor performance. These oscilloscopes are offered in bandwidths of 200 MHz and 100 MHz, featuring a maximum record length of 100 Mpts and the ability to display 2/4 analog channels alongside 16 digital channels for mixed signal analysis.

The SDS1000X HD series incorporates Siglent’s SPO technology, boasting a maximum waveform capture rate of up to 120,000 wfm/s in normal mode (up to 500,000 wfm/s in Sequence mode). These oscilloscopes also feature a 256-level intensity grading display function and a color temperature display mode. An innovative digital trigger system with high sensitivity and low jitter is employed, supporting various powerful triggering modes, including serial bus triggering.

Equipped with tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, and Power Analysis, the SDS1000X HD series allows for the capture, storage, and analysis of extended waveform records. Additionally, these oscilloscopes offer an impressive array of measurement and mathematical capabilities, options for a 25 MHz arbitrary waveform generator, and support for serial decoding.

The large 10.1″ capacitive touch screen display supports multi-touch gestures and features a user-friendly UI design, significantly enhancing operational efficiency. Furthermore, it supports mouse control and allows for remote web control over LAN.
