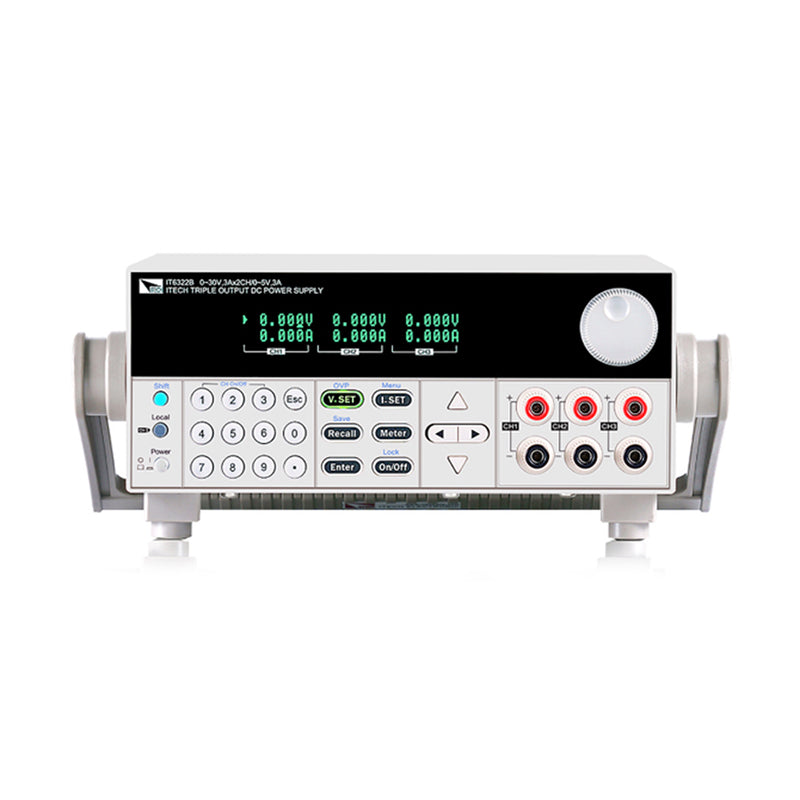

ITECH's IT6300 series is a high-performance, programmable, triple channel DC power supply. Each output voltage and current can be set from 0 to the maximum rated output. The IT6300 provides series connection, parallel connection and synchronous functions of channel, along with high resolution (1mV/1mA) and multiple communication interfaces. All of these features make for a powerful, compact, cost-effective DC power supply.

Three Channel DC Power Supply

  • Voltage: 30V
  • Current: 3A
  • Power: 90W


  • Triple output voltage, all are adjustable.
  • Can set to serial/ parallel/ track mode
  • The voltage and current for each channel can be displayed at the same time
  • Small size of 1/2 2U
  • VFD display
  • Function keys with LED light
  • Remote measurement function, compensation online pressure drop
  • High accuracy, high resolution and high stability
  • Limited voltage and over heat protection
  • Intelligent fan control
  • Built-in RS232/USB/GPIB communication interface
  • Low ripple and low noise
  • Can be monitored by computer software
  • Support standard SCPI communication protocol
  • Memory capacity of 36 groups, for save and recall
  • Can adjust the stepping by left/right arrow button
  • Output timer function(0.1-99999.9 seconds)
  • Isolated circuit, support plus and minus reverse
