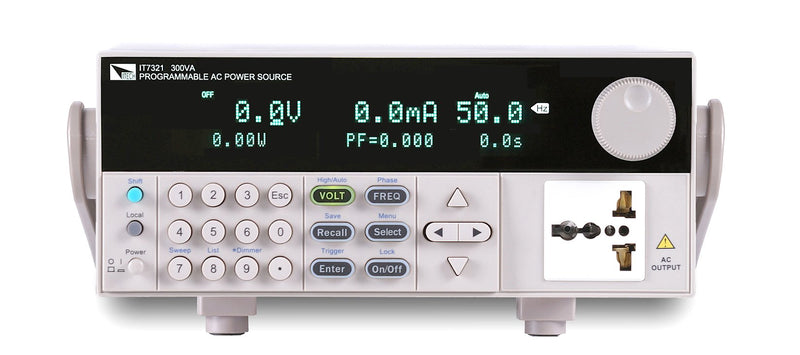

ITECH IT7321

The IT7300 Series is a compact, switch mode, programmable AC Source with unmatched Price/Performance value. The IT7300 Series comes packed with a high power density (300VA for 1/2 2U, and 1500VA for 3U), adjustable frequency range (45Hz - 500Hz), and built in LAN/RS-232/USB communication interfaces.

FEATURES

• High Accuracy & Resolution
• Compact and standard size (300 VA ½ 2 U)
• Programmable frequency: 45Hz - 500HzU
• Display Vrms, Irms, Ipeak, frequency, PF, apparent power and active power simultaneously
• IEC61000-4-11, IEC 61000-4-14, IEC 61000-4-28 voltage dips and frequency variation simulation
• Power line disturbance simulation capability
• Programmable voltage and current limit settings
• Dimmer function
• Turn on, turn off phase angle control (0-360°)Can be monitored by computer software
• TTL signal which indicates output transient
• Support front & real panel output
• List mode to generate surge, sa and other line disturbance simulations
• Over-volate, over-power, over-current, over-temperature protection features
• Built-in LAN, RS-232 / GPIB / USB interface programming with SCPI command language
• Voltage Resolution: 0.1V
• Voltage Accuracy: +/- (0.2%+6V)
