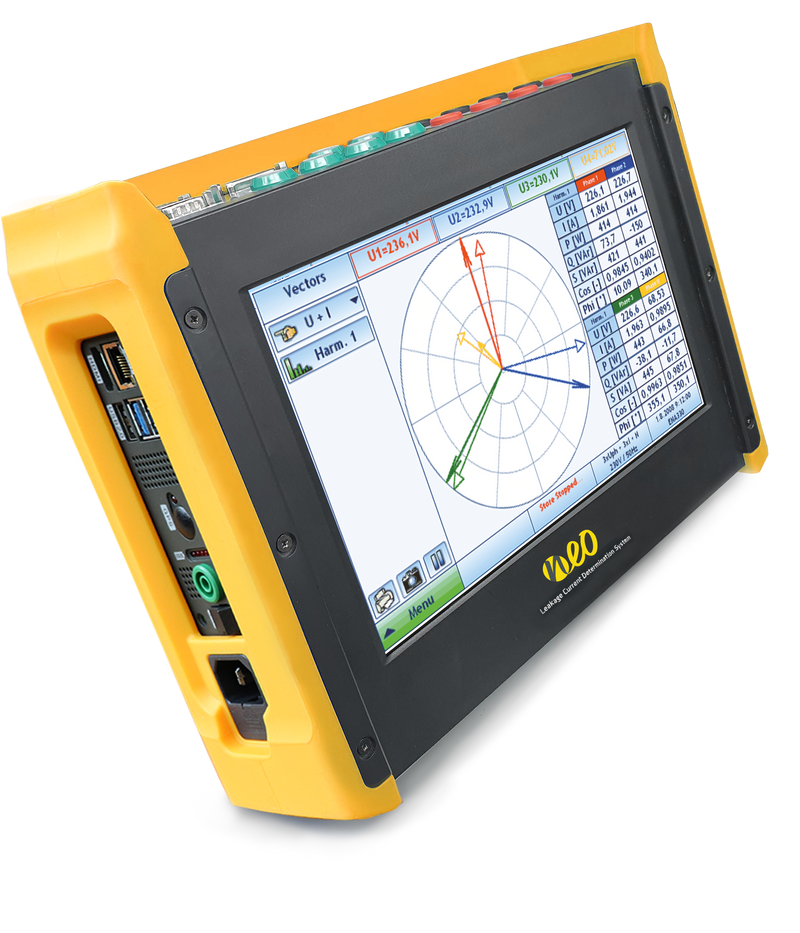

NEO Messtechnik PQA8000 (DEMO)

Fully functional demo unit.

The NEO PQA8000 reflects our understanding of power grid applications of today – the most complete and reliable mobile Analyzer you will find on the market. Multi-Touch, 4 hours mobile operation and complying with Power Quality Standards and Grid Codes your measurement application requires. Class A Power Quality Analyzer for measurements and analyses way beyond EN50160.

Hardware

• 11 inch full-HD Smart Touch display
• Up to 4 hours of operation.
• Sensor Supply for current clamps and sensors (uni- and bipolar)
• GPS for highly-precise time synchronization
• Large SSD, up to 1 TB data storage
• Interfaces: USB 3.0, TCP/IP, LAN, Wifi, Bluetooth, RS232, Modbus, 104, DIO, and CAN.

Features

• Supraharmonics up to 500 kHz
• High Accuracy: 0.05%
• High Sampling Rate: 124kS/s or 1MS/s
• High Resolution: 18bit / 24bit
• High Safety: CAT IV 600V
• Power Quality: Class A
• High Dynamic: 0.5mA to 150kA
• High Performance: PC with Multi-Touch and battery pack
• High Connectivity: additional input signals, Interfaces, AC&DC power, etc.
• Visualizations: Recorder, Waveform, FFT, Vector, Table, etc.
• System Dynamics: Resonances, Phase Angle Jumps, etc.
• Transient Recording: Waveform & Disturbance Trigger
• Disturbance: 1/2 Period storing & triggering
• Phasor Measurement Unit(PMU) and RoCoF
• Standards and Certifications: IEC61010-1 (2011) / IEC61010-2-030 / IEC 61000-4-3 / IEC 61000-4-4 / LVD Directive 2014 / EMC Directive 2014/ Rohs Directive 2015/ EN 61000-3-2 / EN 61000-3-3 / EN 61326-1 / EN 55011 +A1, Class A
