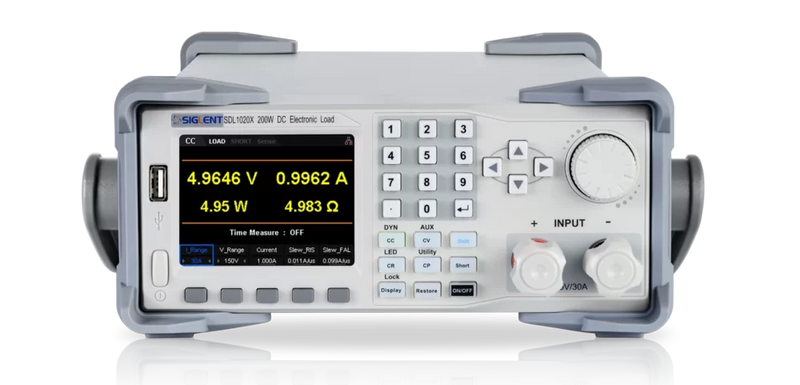

Siglent SDL1020X-E - DC Electronic Load

The SDL1000X/SDL1000X-E series Programmable DC Electronic Load is equipped with a 3.5-inch TFT-LCD display, providing a user-friendly interface and exceptional performance specifications. The SDL1020X/SDL1020X-E models boast an input range of 150 V/30 A 200 W, while the SDL1030X/SDL1030X-E feature an input range of 150 V/30 A 300 W. The SDL1000X series leads with a measurement resolution of 0.1 mV/0.1 mA, and the base SDL1000X-E series resolution is 1 mV/1 mA, with adjustable current rise times ranging from 0.001 A/μs to 2.5 A/μs.

For remote communication and control, the SDL series includes RS232/USB/LAN interface types. The SDL1000X series ensures stability across a broad spectrum of applications, catering to diverse testing requirements in power, battery/handheld device design, industry, LED lighting, automotive electronics, and aerospace.

Key Features:
- Static modes/Dynamic mode: CC/CV/CR/CP
- CC Dynamic mode: Continuous, pulsed, toggled
- CC Dynamic mode: 25 kHz, CP Dynamic mode: 12.5 kHz, CV Dynamic mode: 0.5 Hz
- Measuring speed of voltage and current: up to 500 kHz
- Adjustable current rise time range: 0.001 A/μs to 2.5 A/μs
- Min. readback resolution: 0.1 mV, 0.1 mA
- Short-circuit, Battery test, CR-LED mode, and factory test functions
- 4-wire SENSE compensation mode function
- List function supports editing as many as 100 steps
- Program function supports 50 groups of steps
- OCP, OVP, OPP, OTP, and LRV protection
- External analog control
- Voltage, Current monitoring via 0-10 V
- 3.5-inch TFT-LCD display, capable of displaying multiple parameters and states simultaneously
- Built-in RS232/USB/LAN communication interface, USB-GPIB module (optional)
- Waveform trend chart and easy-to-use file storage and call functions
- Includes PC software: Supports SCPI, LabView driver
