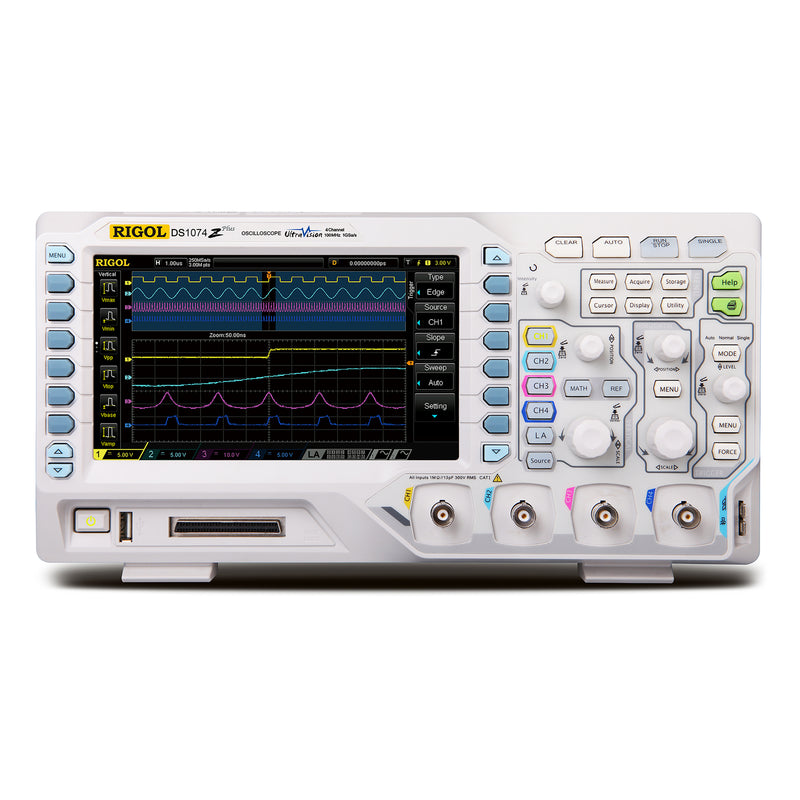

Rigol DS1074Z Plus

by Rigol
Original price $605.88 - Original price $605.88
Original price $605.88
$605.88
$605.88 - $605.88
Current price $605.88
Availability:
Only 1 left!

The DS1074Z Plus is one of Rigol's economical digital oscilloscopes. It offers unprecedented value in customer applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. The 4-channel, 70 MHz, upgradable to MSO version with the purchase of the RPL1116 digital lead kit scope has a 7-inch display with Rigol's UltraVision technology, as well as a host of options.

  • 70 MHz bandwidth
  • 4 analog channels
  • Upgradable to 16 digital channels (requires optional RPL1116 logic probe to operate)
  • Real-time sample rate up to 1 GSa/s
  • 24 Mpts with the deep memory option
  • Up to 30,000 wfms/s waveform capture rate
  • Low noise floor, vertical scale range: 1 mV/div to 10 V/div
  • Various interfaces: USB Host&Device, LAN (LXI), AUX

Free Options Bundle for all 1000Z Models

All options now come standard and factory installed, which includes: serial decode, deep memory, record mode, and advanced triggering. This free bundle is a $450.00 value!


Models and Comparisons

Model DS1054Z DS1074Z Plus DS1074Z-S Plus DS1104Z Plus DS1104Z-S Plus
Analog Bandwidth 50 MHz 70 MHz 100 MHz
Number of Analog Channels 4
Number of Digital Channels None DS1000Z Plus supports 16 digital channels after being upgraded with the MSO upgrade option
Max. Real-time Sample Rate Analog: 1 GSa/s (1-ch), 500 MSa/s (2-ch), 250 MSa/s (3/4-ch)
Digital: 1 GSa/s (8-ch), 500 MSa/s (16-ch)
Max. Memory Depth Analog: 24 Mpts (1-ch), 12 Mpts (2-ch), 6 Mpts (3/4-ch)
Digital: 24 Mpts (8-ch), 12 Mpts (16-ch)
Max. Waveform Capture Rate 30,000 wfms/s
Hardware Real-time Waveform Recording and Playback Functions Up to 60,000 frames
Standard Probes 4 sets of PVP3150 150 MHz Passive HighZ Probes
Built-in 2Ch 25MHz Source No No Yes No Yes
