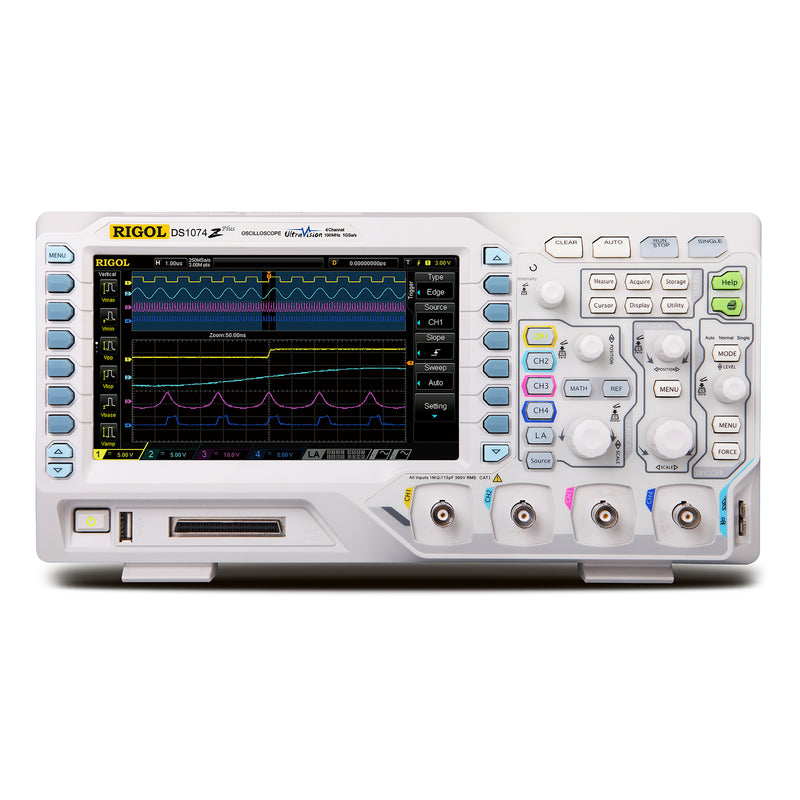

Rigol DS1074Z-S Plus

Rigol DS1074Z-S Plus

by Rigol
$869.88 - $869.88
$869.88
$869.88
$869.88 - $869.88
$869.88
Availability:
Only 1 left!
Download Datasheet

The DS1074Z-S Plus is one of Rigol's economical digital oscilloscopes. It offers unprecedented value in customer applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. The 4-channel, 70 MHz, upgradable to MSO version with the purchase of the RPL1116 digital lead kit scope has a 7-inch display with Rigol's UltraVision technology, as well as a host of options.

  • 70 MHz bandwidth
  • 4 analog channels
  • Upgradable to 16 digital channels (requires optional RPL1116 logic probe to operate)
  • Built in 2 channel 25MHz waveform generator
  • Real-time sample rate up to 1 GSa/s
  • 12 Mpts Memory Depth, 24 Mpts with the deep memory option
  • Up to 30,000 wfms/s waveform capture rate
  • Low noise floor, vertical scale range: 1 mV/div to 10 V/div
  • Various interfaces: USB Host&Device, LAN (LXI), AUX

Free Options Bundle for all 1000Z Models

All options now come standard and factory installed, which includes: serial decode, deep memory, record mode, and advanced triggering. This free bundle is a $450.00 value!

Models and Comparisons

Model DS1054Z DS1074Z Plus DS1074Z-S Plus DS1104Z Plus DS1104Z-S Plus
Analog Bandwidth 50 MHz 70 MHz 100 MHz
Number of Analog Channels 4
Number of Digital Channels None DS1000Z Plus supports 16 digital channels after being upgraded with the MSO upgrade option
Max. Real-time Sample Rate Analog: 1 GSa/s (1-ch), 500 MSa/s (2-ch), 250 MSa/s (3/4-ch)
Digital: 1 GSa/s (8-ch), 500 MSa/s (16-ch)
Max. Memory Depth Analog: 24 Mpts (1-ch), 12 Mpts (2-ch), 6 Mpts (3/4-ch)
Digital: 24 Mpts (8-ch), 12 Mpts (16-ch)
Max. Waveform Capture Rate 30,000 wfms/s
Hardware Real-time Waveform Recording and Playback Functions Up to 60,000 frames
Standard Probes 4 sets of PVP3150 150 MHz Passive HighZ Probes
Built-in 2Ch 25MHz Source No No Yes No Yes
